High-Frequency Induction Heater: Driving High-Quality Development in Metal Processing and Manufacturing Industry

In today's field of metal processing and manufacturing, efficient, precise, and environmentally friendly processing technologies and equipment are highly favored. The high-frequency induction heating machine is one of the outstanding examples. Its application range is far from limited to the heating of rods but also extensively involves various heat treatment processes of bar steel and key processes such as hot forming and welding of metal parts. With its unique advantages, it plays an increasingly important role in the industry.

Application in Heat Treatment of Bar Steel

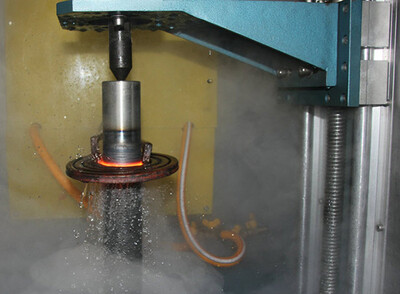

Quenching Process

Quenching is a key heat treatment process that can significantly enhance the hardness and strength of bar steel. The high-frequency induction heating machine demonstrates excellent performance in the quenching process of bar steel. By leveraging its rapid heating advantage, it can heat the surface and a certain depth of the bar steel to the critical temperature range required for quenching in a very short time.

For example, for common medium carbon steel bars, the high-frequency induction heating machine can heat them to 800°C - 900°C, the quenching temperature, in just a few minutes. Subsequently, with the aid of a supporting cooling system and the appropriate cooling medium, the heated bar steel can be rapidly cooled, transforming its internal structure into martensite and other quenched structures, effectively improving the hardness and wear resistance of the bar steel. This allows it to better meet the high strength and high wear resistance requirements of parts like shafts in mechanical manufacturing and molds.

Annealing Process

Annealing is primarily used to eliminate the residual stress generated during the processing of bar steel, improve its microstructure, and enhance properties such as plasticity and toughness. When annealing bar steel with a high-frequency induction heating machine, it can precisely heat the bar steel to the corresponding temperature according to different annealing process requirements (such as full annealing, spheroidizing annealing, etc.) and perform appropriate heat preservation.

In this process, the atoms inside the bar steel gain enough energy to diffuse and rearrange, releasing the residual stress caused by processing, making the grains grow larger and more uniform, thus restoring and enhancing the plasticity and toughness of the bar steel. This makes it easier for subsequent forging, stamping, cutting, and other processing operations. For instance, steel bars after cold rolling have significant residual stress and grain deformation. After annealing treatment using a high-frequency induction heating machine, their processing performance is greatly improved, and the defect rate is significantly reduced, laying a good foundation for subsequent production of high-quality metal products.

Tempering Process

Tempering is usually an important process implemented after quenching, aimed at eliminating the internal stress generated during quenching and adjusting the balance between hardness and toughness of bar steel to obtain good comprehensive mechanical properties. During the tempering treatment of bar steel with a high-frequency induction heating machine, the machine can accurately reheat the bar steel to the corresponding tempering temperature range, further stabilizing and optimizing its internal structure.

In this process, the internal stress is effectively released, hardness is appropriately adjusted within a reasonable range, and toughness is enhanced. This avoids defects such as cracks and deformation in bar steel caused by excessive internal stress from quenching. For example, after quenching, steel bars used for molds, when tempered with a high-frequency induction heating machine, retain a certain hardness to meet forming process requirements while possessing enough toughness to withstand repetitive impacts from operations like stamping and die casting. This extends the mold's lifespan, improves production efficiency, and enhances product quality.

Application in Hot Forming and Welding of Metal Parts

Rapid Hot Forming

In the hot forming process of metal parts, the high-frequency induction heating machine plays a crucial role. It can quickly and precisely heat metal parts to the temperature range suitable for hot forming, enabling the metal to have good plasticity at that temperature, facilitating forming processes such as forging, stamping, and extrusion.

Compared to traditional heating methods, the rapid heating characteristic of the high-frequency induction heating machine greatly shortens the preparation time for hot forming, improving production efficiency. For instance, in manufacturing complex-shaped automobile parts, metal blanks need to be hot-stamped. The high-frequency induction heating machine can quickly heat the blanks to the appropriate temperature, ensuring a smooth stamping process. Its localized and precise heating reduces the thermal impact on other parts of the metal blank, helping to improve the precision and quality of the formed parts and reducing the defect rate.

Welding Process

Regarding the welding of metal parts, the high-frequency induction heating machine is also an ideal choice. It generates heat based on electromagnetic induction, allowing the welding parts to quickly heat up and locally melt the metal parts to achieve welding connections.

In scenarios involving dissimilar metal welding or high-quality welding requirements, the advantages of the high-frequency induction heating machine are even more apparent. For example, in electronic equipment manufacturing, different metals such as copper and aluminum often need to be welded. The high-frequency induction heating machine can overcome differences in melting points and thermal conductivity between the two metals by adjusting parameters, achieving high-quality welding connections. This ensures the electrical conductivity, strength, and other performance requirements of the welded parts meet product standards while avoiding thermal damage to other precision electronic components due to extensive heating, thereby enhancing the overall reliability and performance of the product.

In conclusion, with its wide range of applications and significant advantages, the high-frequency induction heating machine has become an indispensable important device in the field of metal processing and manufacturing. It plays an increasingly important role in improving product quality, enhancing production efficiency, and promoting sustainable development in the industry, and it will demonstrate even greater application value in the future.
